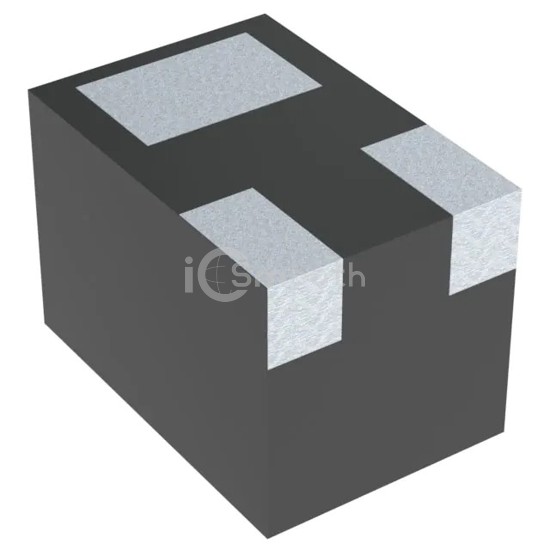

Name: NTNS5K0P021ZTCG
Brand: onsemi
SKU: NTNS5K0P021ZTCG
Availability: InStock

REF: NTNS5K0P021ZTCG onsemi

NTNS5K0P021ZTCG

MOSFET P-CH 20V 127MA 3XDFN

NTNS5K0P021ZTCG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 127MA 3XDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 4,649

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	127mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	12.8 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	125mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-XDFN (0.42x0.62)
Package / Case	3-XFDFN
