Name: NTNS3C94NZT5G
Brand: onsemi
SKU: NTNS3C94NZT5G
Availability: InStock

REF: NTNS3C94NZT5G onsemi

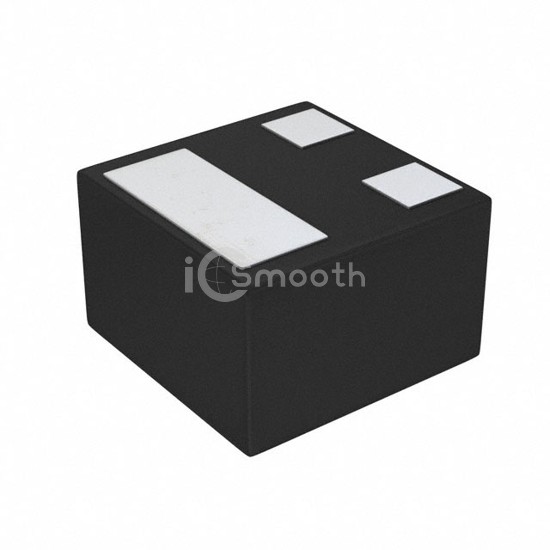

NTNS3C94NZT5G

MOSFET N-CHANNEL 12V 384MA

NTNS3C94NZT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 12V 384MA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 5,842

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	384mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	480mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	35 pF @ 9.6 V
FET Feature	-
Power Dissipation (Max)	120mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-XLLGA (0.62x0.62)
Package / Case	3-XFDFN
