NTNS3A91PZT5G

In Stock: 352,961

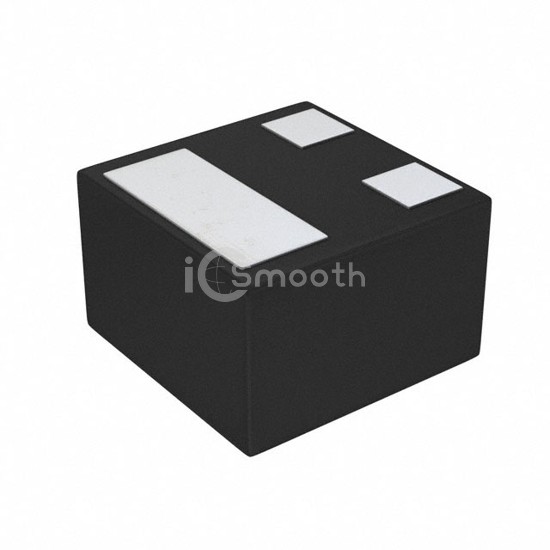

NTNS3A91PZT5G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTNS3A91PZT5G onsemi
NTNS3A91PZT5G

onsemi

MOSFET P-CH 20V 223MA 3XLLGA

NTNS3A91PZT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 223MA 3XLLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFLGA.

Datasheet Request a Quote

In Stock: 352,961

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C223mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs1.6Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.1 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds41 pF @ 15 V
FET Feature-
Power Dissipation (Max)121mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-XLLGA (0.62x0.62)
Package / Case3-XFLGA
