Name: NTNS3193NZT5G
Brand: onsemi
SKU: NTNS3193NZT5G
Price: 0.73 USD
Availability: InStock

REF: NTNS3193NZT5G onsemi

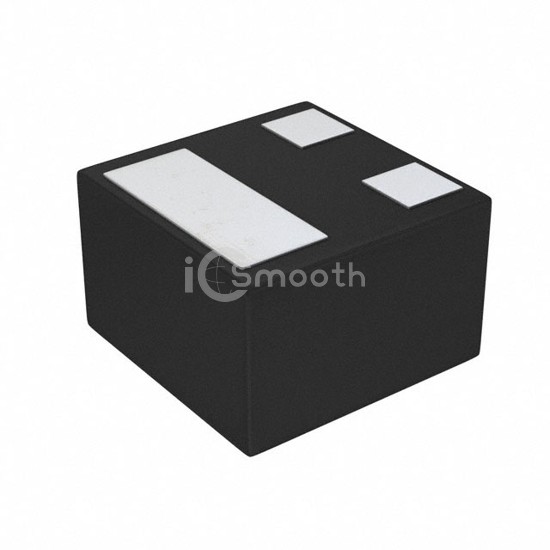

NTNS3193NZT5G

MOSFET N-CH 20V 224MA 3XLLGA

NTNS3193NZT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 224MA 3XLLGA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFLGA.

Datasheet Request a Quote

In Stock: 25,225

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	224mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	15.8 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	120mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-XLLGA (0.62x0.62)
Package / Case	3-XFLGA
