Name: NTMTSC1D6N10MCTXG
Brand: onsemi
SKU: NTMTSC1D6N10MCTXG
Price: 7.04 USD
Availability: InStock

REF: NTMTSC1D6N10MCTXG onsemi

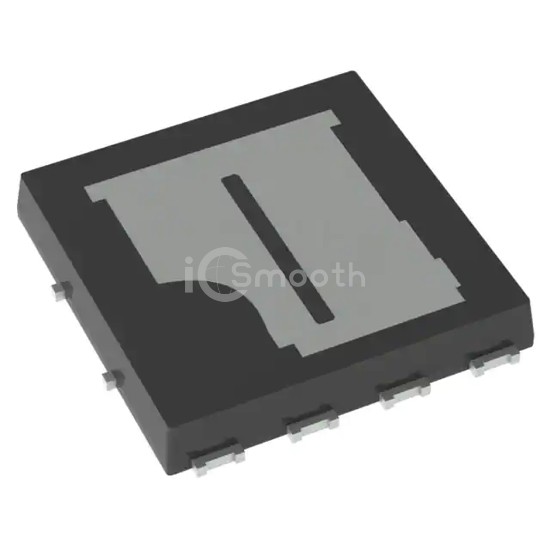

NTMTSC1D6N10MCTXG

MOSFET N-CH 100V 35A/267A 8TDFNW

NTMTSC1D6N10MCTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 35A/267A 8TDFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,990

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	35A (Ta), 267A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	1.7mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	4V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	106 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7630 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	5.1W (Ta), 291W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	8-TDFNW (8.3x8.4)
Package / Case	8-PowerTDFN
