Name: NTMTSC1D5N08MC
Brand: onsemi
SKU: NTMTSC1D5N08MC
Price: 4.11 USD
Availability: InStock

REF: NTMTSC1D5N08MC onsemi

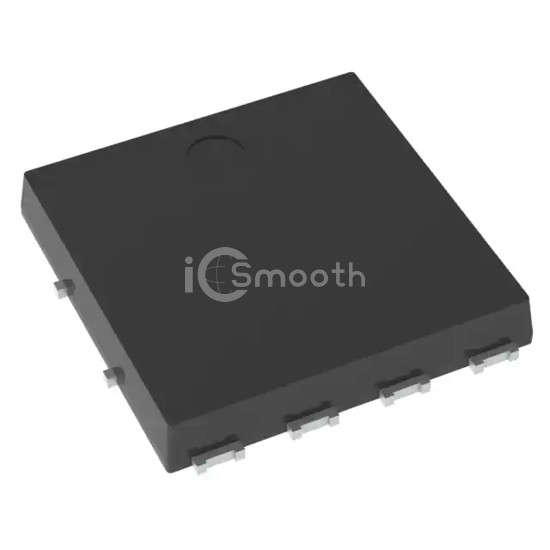

NTMTSC1D5N08MC

MOSFET N-CH 80V 33A/287A 8DFNW

NTMTSC1D5N08MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 33A/287A 8DFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Request a Quote

In Stock: 7,214

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	33A (Ta), 287A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.56mOhm @ 80A, 10V
Vgs(th) (Max) @ Id	4V @ 650µA
Gate Charge (Qg) (Max) @ Vgs	140 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	10400 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	3.3W (Ta), 250W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	8-TDFNW (8.3x8.4)
Package / Case	8-PowerTDFN
