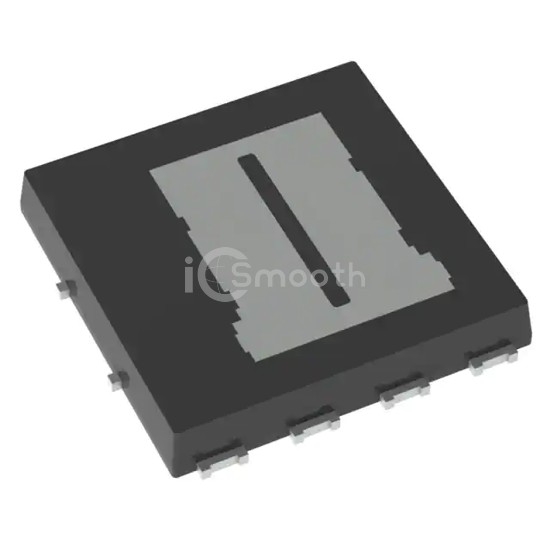

Name: NTMTSC002N10MCTXG
Brand: onsemi
SKU: NTMTSC002N10MCTXG
Price: 6.18 USD
Availability: InStock

REF: NTMTSC002N10MCTXG onsemi

NTMTSC002N10MCTXG

MOSFET N-CH 100V 45A/236A 8TDFNW

NTMTSC002N10MCTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 45A/236A 8TDFNW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,500

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	45A (Ta), 236A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	2mOhm @ 90A, 10V
Vgs(th) (Max) @ Id	4V @ 520µA
Gate Charge (Qg) (Max) @ Vgs	89 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6305 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	9W (Ta), 255W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	8-TDFNW (8.3x8.4)
Package / Case	8-PowerTDFN
