Name: NTMTS6D0N15MC
Brand: onsemi
SKU: NTMTS6D0N15MC
Price: 6.53 USD
Availability: InStock

REF: NTMTS6D0N15MC onsemi

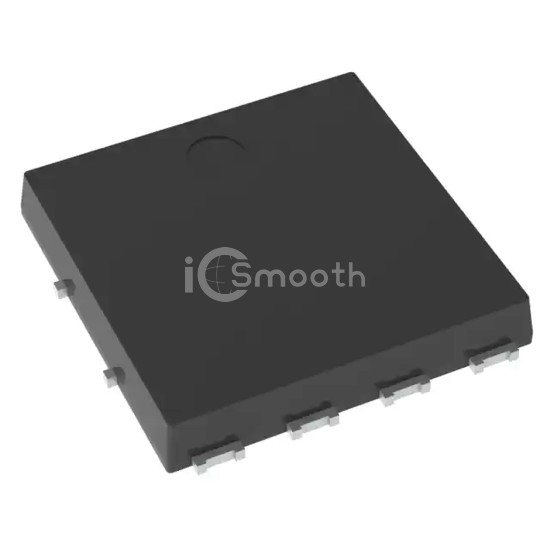

NTMTS6D0N15MC

SINGLE N-CHANNEL POWER MOSFET 15

NTMTS6D0N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SINGLE N-CHANNEL POWER MOSFET 15. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,790

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	19A (Ta), 135A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	6.4mOhm @ 69A, 10V
Vgs(th) (Max) @ Id	4.5V @ 379µA
Gate Charge (Qg) (Max) @ Vgs	58 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4815 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	4.9W (Ta), 245W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
