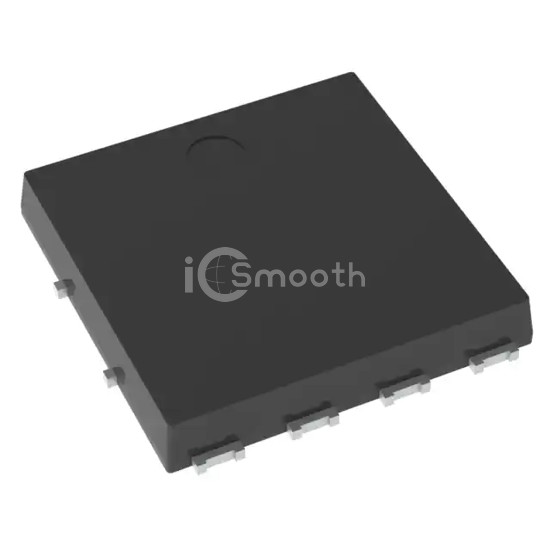

Name: NTMTS0D7N06CLTXG
Brand: onsemi
SKU: NTMTS0D7N06CLTXG
Price: 10.44 USD
Availability: InStock

REF: NTMTS0D7N06CLTXG onsemi

NTMTS0D7N06CLTXG

MOSFET N-CH 60V 62.2A/477A 8DFNW

NTMTS0D7N06CLTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 62.2A/477A 8DFNW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,283

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	62.2A (Ta), 477A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.68mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	225 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	16200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	5W (Ta), 294.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFNW (8.3x8.4)
Package / Case	8-PowerTDFN
