NTMTS0D6N04CLTXG

In Stock: 2,705

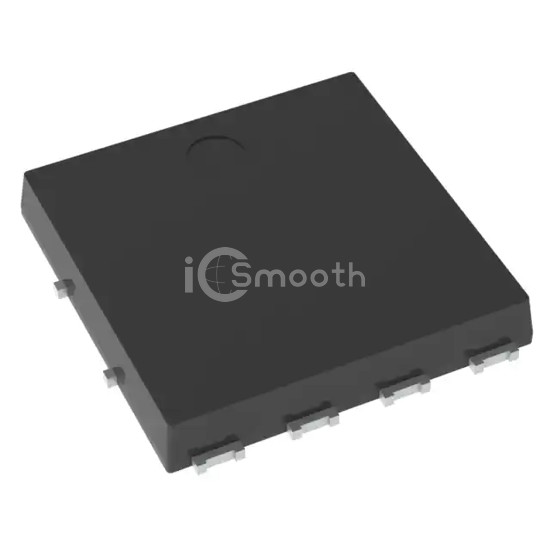

NTMTS0D6N04CLTXG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMTS0D6N04CLTXG onsemi
NTMTS0D6N04CLTXG

onsemi

MOSFET N-CH 40V 554.5A

NTMTS0D6N04CLTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 554.5A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,705

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C554.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.42mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs126 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds16013 pF @ 20 V
FET Feature-
Power Dissipation (Max)5W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
