NTMTS001N06CLTXG

In Stock: 2,997

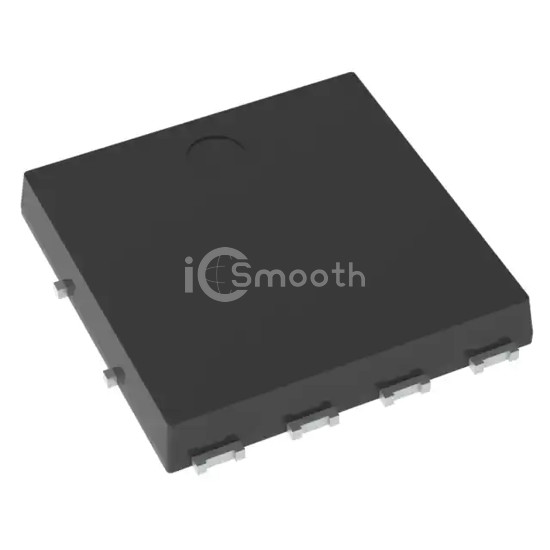

NTMTS001N06CLTXG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMTS001N06CLTXG onsemi
NTMTS001N06CLTXG

onsemi

MOSFET N-CH 60V 398.2A

NTMTS001N06CLTXG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 398.2A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 2,997

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C398.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.81mOhm @ 50A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs165 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds12300 pF @ 25 V
FET Feature-
Power Dissipation (Max)5W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFNW (8.3x8.4)
Package / Case8-PowerTDFN
