NTMT090N65S3HF

In Stock: 1,072

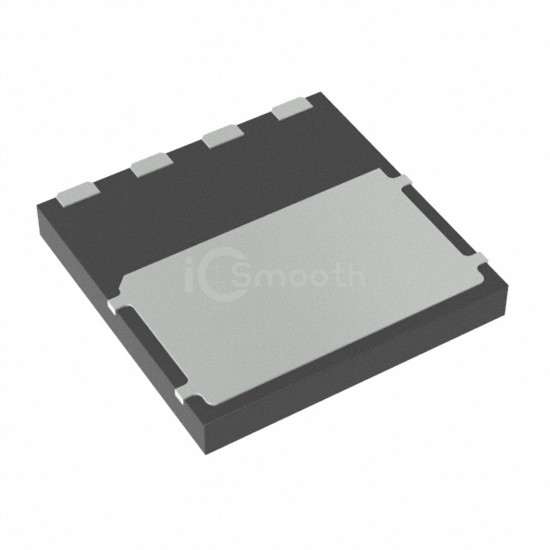

NTMT090N65S3HF - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMT090N65S3HF onsemi
NTMT090N65S3HF

onsemi

POWER MOSFET, N-CHANNEL, SUPERFE

NTMT090N65S3HF is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, N-CHANNEL, SUPERFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-PowerTSFN.

Datasheet Request a Quote

In Stock: 1,072

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs90mOhm @ 18A, 10V
Vgs(th) (Max) @ Id5V @ 860µA
Gate Charge (Qg) (Max) @ Vgs66 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2930 pF @ 400 V
FET Feature-
Power Dissipation (Max)272W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-PQFN (8x8)
Package / Case4-PowerTSFN
