NTMJS1D15N03CGTWG

In Stock: 7,075

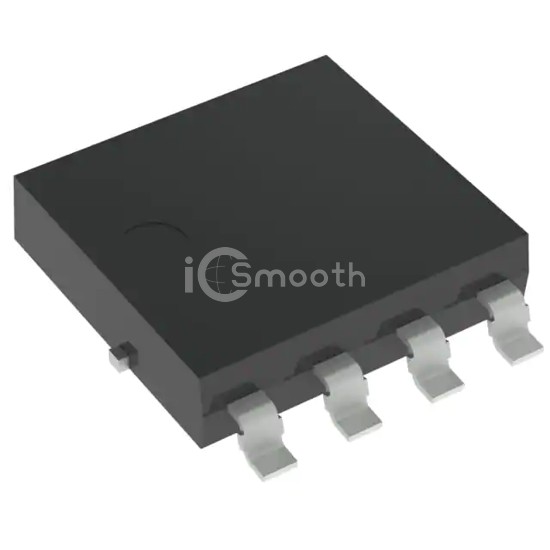

NTMJS1D15N03CGTWG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMJS1D15N03CGTWG onsemi
NTMJS1D15N03CGTWG

onsemi

WIDE SOA

NTMJS1D15N03CGTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. WIDE SOA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56.

Datasheet Request a Quote

In Stock: 7,075

Specifications

17 parameters
Product StatusLast Time Buy
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C45A (Ta), 257A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.15mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 160µA
Gate Charge (Qg) (Max) @ Vgs94 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds7300 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.8W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-LFPAK
Package / CaseSOT-1205, 8-LFPAK56
