Name: NTMFSC4D2N10MC
Brand: onsemi
SKU: NTMFSC4D2N10MC
Price: 3.92 USD
Availability: InStock

REF: NTMFSC4D2N10MC onsemi

NTMFSC4D2N10MC

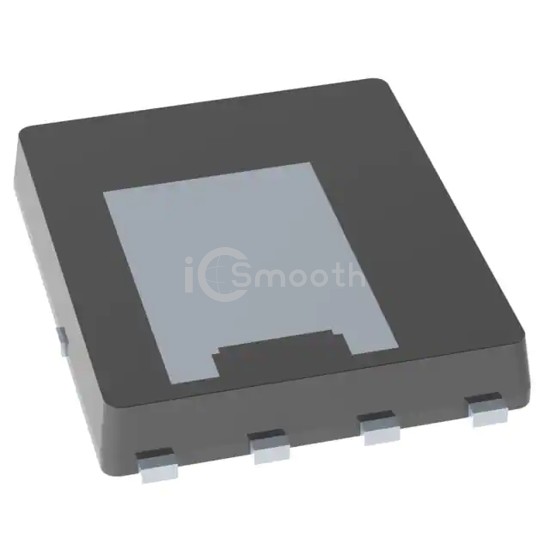

MOSFET N-CH 100V 29.6A/116A 8DFN

NTMFSC4D2N10MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 29.6A/116A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 3,843

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	29.6A (Ta), 116A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	4.3mOhm @ 44A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	42 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2856 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	7.9W (Ta), 122W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (5x6.15)
Package / Case	8-PowerVDFN
