NTMFSC010N08M7

In Stock: 6,868

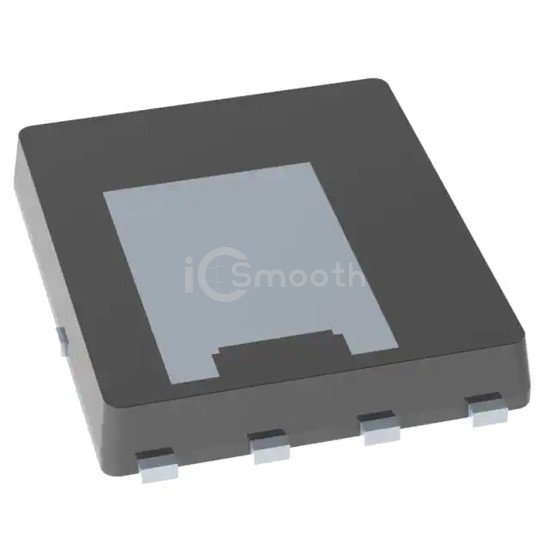

NTMFSC010N08M7 - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMFSC010N08M7 onsemi
NTMFSC010N08M7

onsemi

MOSFET N-CHANNEL 80V 61A

NTMFSC010N08M7 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CHANNEL 80V 61A. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Datasheet Request a Quote

In Stock: 6,868

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C12.5A (Ta), 61A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs10mOhm @ 10A, 10V
Vgs(th) (Max) @ Id4.5V @ 120µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2700 pF @ 40 V
FET Feature-
Power Dissipation (Max)3.3W (Ta), 78.1W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN (5x6.15)
Package / Case8-PowerVDFN
