Name: NTMFS4833NST3G
Brand: onsemi
SKU: NTMFS4833NST3G
Availability: InStock

REF: NTMFS4833NST3G onsemi

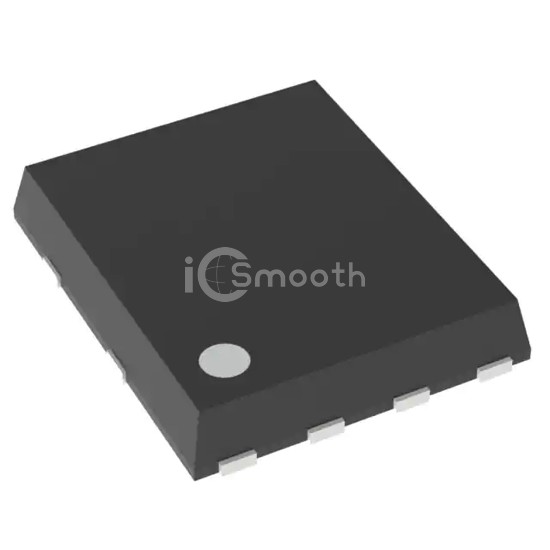

NTMFS4833NST3G

MOSFET N-CH 30V 16A/156A SO-8FL

NTMFS4833NST3G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 16A/156A SO-8FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 3,565

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	16A (Ta), 156A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.2mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	86 nC @ 11.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5250 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta), 86.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SO-8FL
Package / Case	8-PowerTDFN
