NTMFS08N003C

In Stock: 8,743

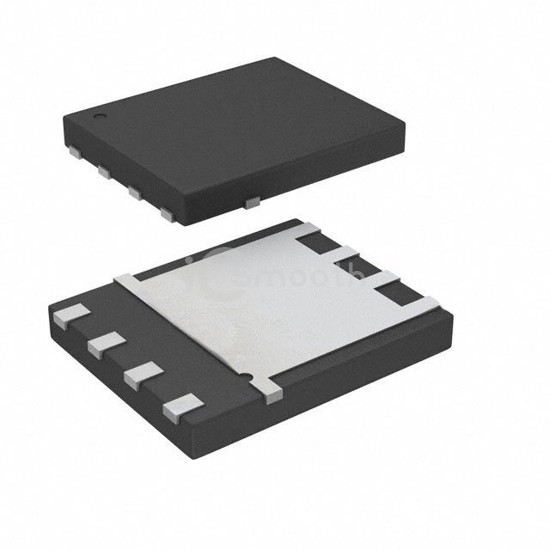

NTMFS08N003C - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTMFS08N003C onsemi
NTMFS08N003C

onsemi

MOSFET N-CH 80V 22A/147A POWER56

NTMFS08N003C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 22A/147A POWER56. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 8,743

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C22A (Ta), 147A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs3.1mOhm @ 56A, 10V
Vgs(th) (Max) @ Id4V @ 310µA
Gate Charge (Qg) (Max) @ Vgs73 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5350 pF @ 40 V
FET Feature-
Power Dissipation (Max)2.7W (Ta), 125W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePower56
Package / Case8-PowerTDFN
