NTLUS4C12NTBG

In Stock: 9,275

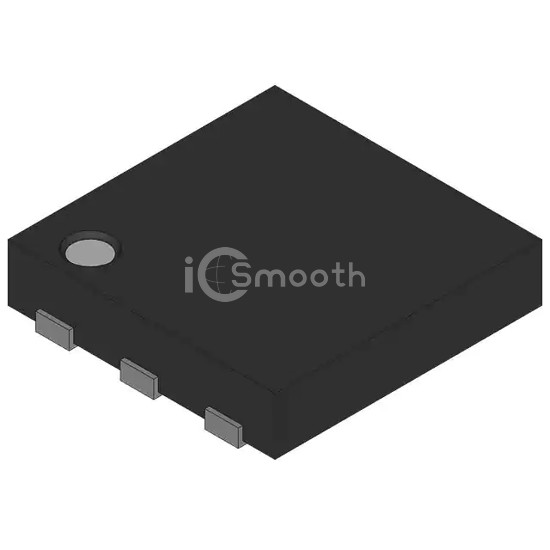

NTLUS4C12NTBG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLUS4C12NTBG onsemi
NTLUS4C12NTBG

onsemi

NTLUS4C12N - SINGLE N-CHANNEL CO

NTLUS4C12NTBG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. NTLUS4C12N - SINGLE N-CHANNEL CO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,275

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)3.3V, 10V
Rds On (Max) @ Id, Vgs9mOhm @ 9A, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs18 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1172 pF @ 15 V
FET Feature-
Power Dissipation (Max)630mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (2x2)
Package / Case6-UDFN Exposed Pad
