Name: NTLUS4C12NTAG
Brand: onsemi
SKU: NTLUS4C12NTAG
Availability: InStock

REF: NTLUS4C12NTAG onsemi

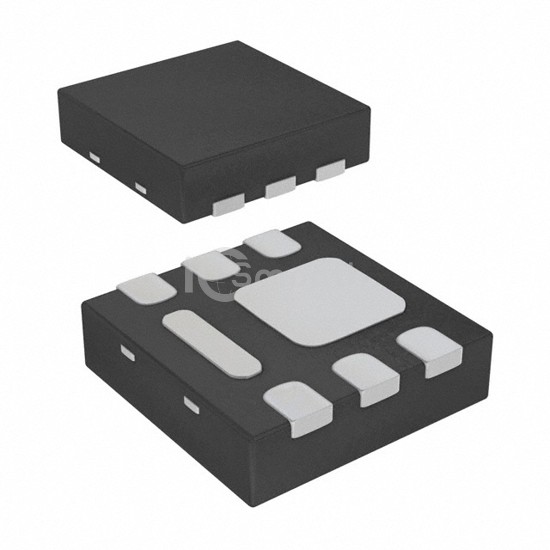

NTLUS4C12NTAG

MOSFET N-CH 30V 6.8A 6UDFN

NTLUS4C12NTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 6.8A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,869

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.3V, 10V
Rds On (Max) @ Id, Vgs	9mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1172 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	630mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (2x2)
Package / Case	6-UDFN Exposed Pad
