NTLUS3C18PZTBG

In Stock: 9,000

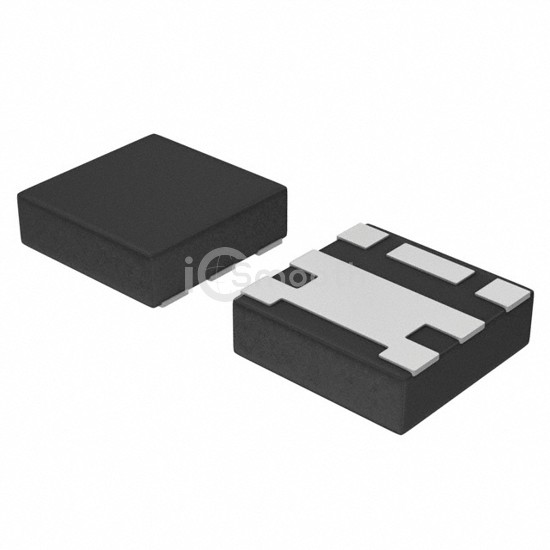

NTLUS3C18PZTBG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLUS3C18PZTBG onsemi
NTLUS3C18PZTBG

onsemi

MOSFET P-CH 12V 4.4A 6UDFN

NTLUS3C18PZTBG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 4.4A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 9,000

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs24mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds1570 pF @ 6 V
FET Feature-
Power Dissipation (Max)660mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.6x1.6)
Package / Case6-PowerUFDFN
