Name: NTLUS3C18PZTAG
Brand: onsemi
SKU: NTLUS3C18PZTAG
Availability: InStock

REF: NTLUS3C18PZTAG onsemi

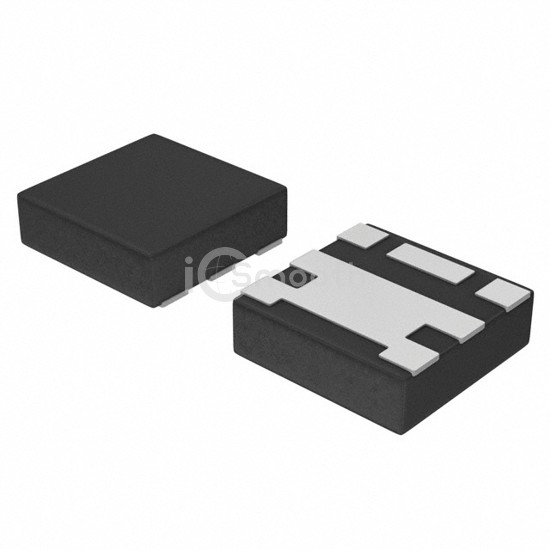

NTLUS3C18PZTAG

MOSFET P-CH 12V 4.4A 6UDFN

NTLUS3C18PZTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 4.4A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 4,322

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	4.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	24mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.8 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1570 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	660mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (1.6x1.6)
Package / Case	6-PowerUFDFN
