Name: NTLUS3A90PZCTAG
Brand: onsemi
SKU: NTLUS3A90PZCTAG
Availability: InStock

REF: NTLUS3A90PZCTAG onsemi

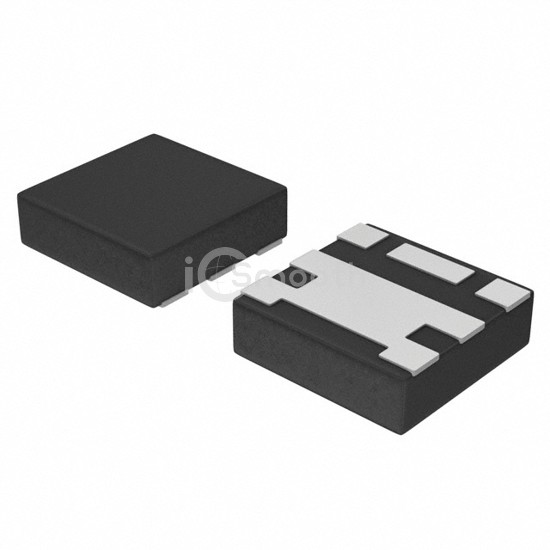

NTLUS3A90PZCTAG

MOSFET P-CH 20V 2.6A 6UDFN

NTLUS3A90PZCTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 2.6A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 3,856

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	62mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.3 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	950 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (1.6x1.6)
Package / Case	6-PowerUFDFN
