NTLUS3A40PZCTBG

In Stock: 6,570

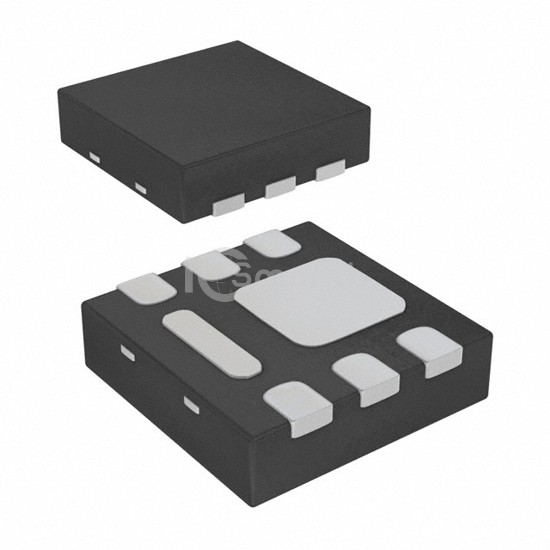

NTLUS3A40PZCTBG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLUS3A40PZCTBG onsemi
NTLUS3A40PZCTBG

onsemi

MOSFET P-CH 20V 4A 6UDFN

NTLUS3A40PZCTBG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 4A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,570

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs29mOhm @ 6.4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds2600 pF @ 15 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (2x2)
Package / Case6-UDFN Exposed Pad
