Name: NTLUS029N06T6TAG
Brand: onsemi
SKU: NTLUS029N06T6TAG
Price: 0.66 USD
Availability: InStock

REF: NTLUS029N06T6TAG onsemi

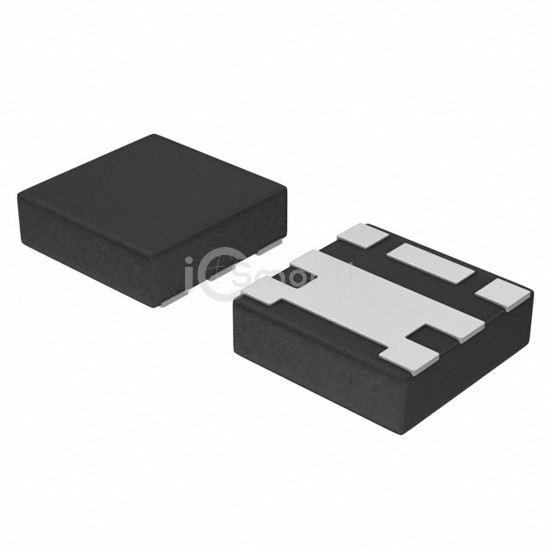

NTLUS029N06T6TAG

MOSFET N-CH 60V 3.5A 6UDFN

NTLUS029N06T6TAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 3.5A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 9,160

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	29mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	2V @ 15µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	410 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFN (1.6x1.6)
Package / Case	6-PowerUFDFN
