NTLUS020N03CTAG

In Stock: 8,425

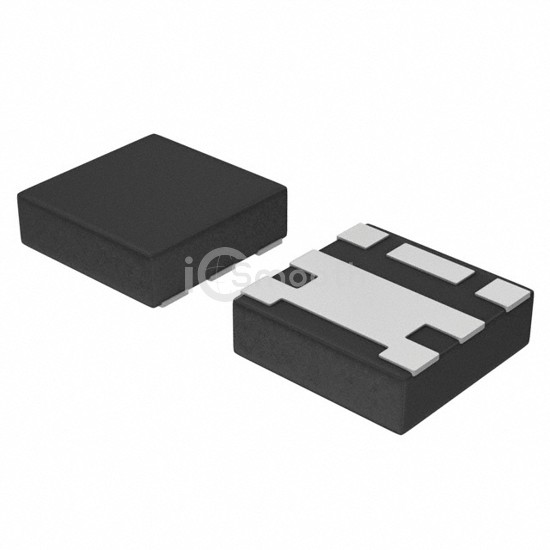

NTLUS020N03CTAG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLUS020N03CTAG onsemi
NTLUS020N03CTAG

onsemi

MOSFET N-CH 30V 5.3A 6UDFN

NTLUS020N03CTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 5.3A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerUFDFN.

Datasheet Request a Quote

In Stock: 8,425

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs13mOhm @ 8A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds620 pF @ 15 V
FET Feature-
Power Dissipation (Max)650mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-UDFN (1.6x1.6)
Package / Case6-PowerUFDFN
