Name: NTLJS7D2P02P8ZTAG
Brand: onsemi
SKU: NTLJS7D2P02P8ZTAG
Price: 0.91 USD
Availability: InStock

REF: NTLJS7D2P02P8ZTAG onsemi

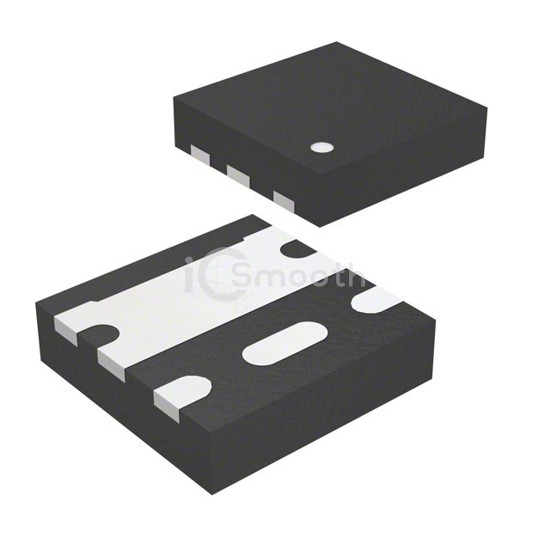

NTLJS7D2P02P8ZTAG

MOSFET P-CH 20V 7.9A 6PQFN

NTLJS7D2P02P8ZTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 7.9A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 1,414

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	7.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	26.7 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	2790 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	860mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerWDFN
