NTLJS4D9N03HTAG

In Stock: 8,313

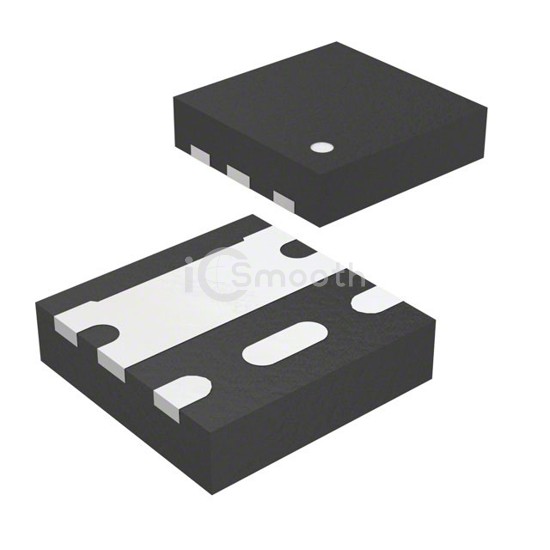

NTLJS4D9N03HTAG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLJS4D9N03HTAG onsemi
NTLJS4D9N03HTAG

onsemi

MOSFET N-CH 30V 9.5A 6PQFN

NTLJS4D9N03HTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 9.5A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Request a Quote

In Stock: 8,313

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V
Rds On (Max) @ Id, Vgs6.1mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.8 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds1020 pF @ 15 V
FET Feature-
Power Dissipation (Max)860mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerWDFN
