Name: NTLJS4D7N03HTAG
Brand: onsemi
SKU: NTLJS4D7N03HTAG
Availability: InStock

REF: NTLJS4D7N03HTAG onsemi

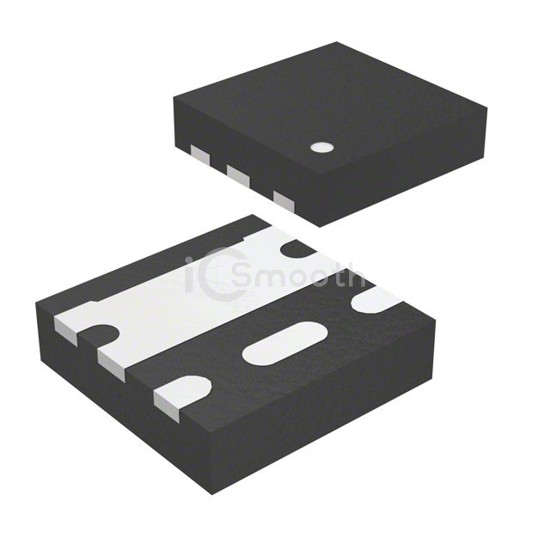

NTLJS4D7N03HTAG

MOSFET N-CH 25V 11.6A 6PQFN

NTLJS4D7N03HTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 11.6A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Request a Quote

In Stock: 8,042

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	11.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.1mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	851 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	860mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerWDFN
