Name: NTLJS4159NT1G
Brand: onsemi
SKU: NTLJS4159NT1G
Price: 0.18 USD
Availability: InStock

REF: NTLJS4159NT1G onsemi

NTLJS4159NT1G

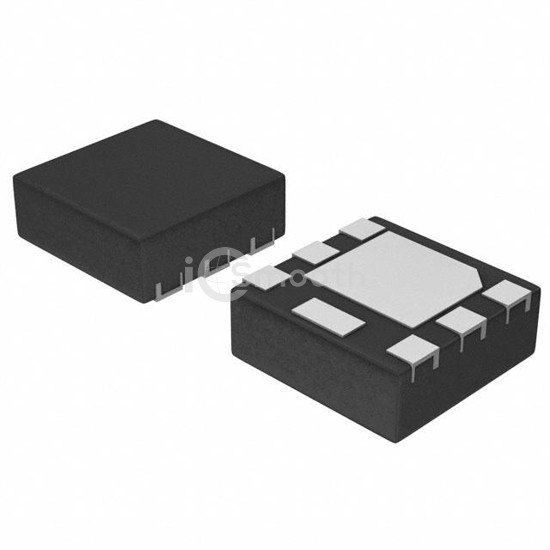

MOSFET N-CH 30V 3.6A 6WDFN

NTLJS4159NT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 3.6A 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,000

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	35mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1045 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Package / Case	6-WDFN Exposed Pad
