NTLJS17D0P03P8ZTAG

In Stock: 5,000

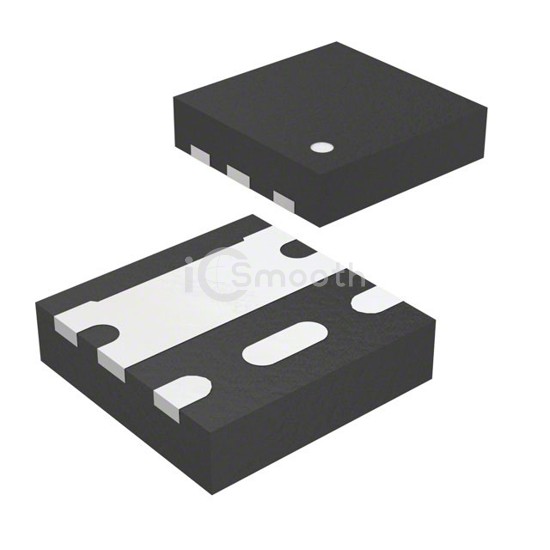

NTLJS17D0P03P8ZTAG - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTLJS17D0P03P8ZTAG onsemi
NTLJS17D0P03P8ZTAG

onsemi

MOSFET P-CH 30V 7A 6PQFN

NTLJS17D0P03P8ZTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 30V 7A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-PowerWDFN.

Datasheet Request a Quote

In Stock: 5,000

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs38 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1600 pF @ 15 V
FET Feature-
Power Dissipation (Max)860mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-PQFN (2x2)
Package / Case6-PowerWDFN
