Name: NTLJF4156NTAG
Brand: onsemi
SKU: NTLJF4156NTAG
Price: 0.60 USD
Availability: InStock

REF: NTLJF4156NTAG onsemi

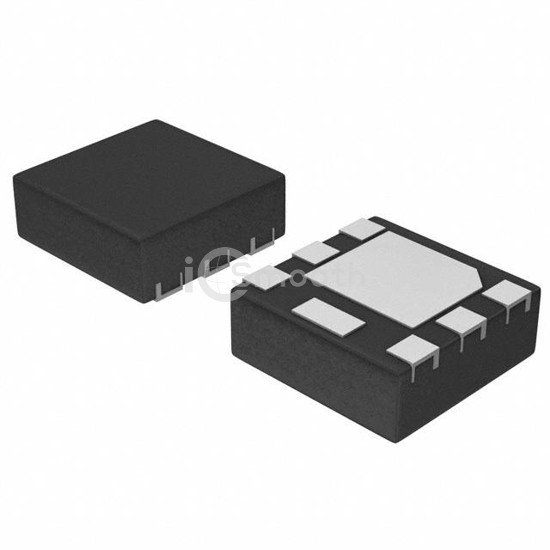

NTLJF4156NTAG

MOSFET N-CH 30V 2.5A 6WDFN

NTLJF4156NTAG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 2.5A 6WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,683

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	70mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	427 pF @ 15 V
FET Feature	Schottky Diode (Isolated)
Power Dissipation (Max)	710mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Package / Case	6-WDFN Exposed Pad
