NTK3142PT1G

In Stock: 50,206

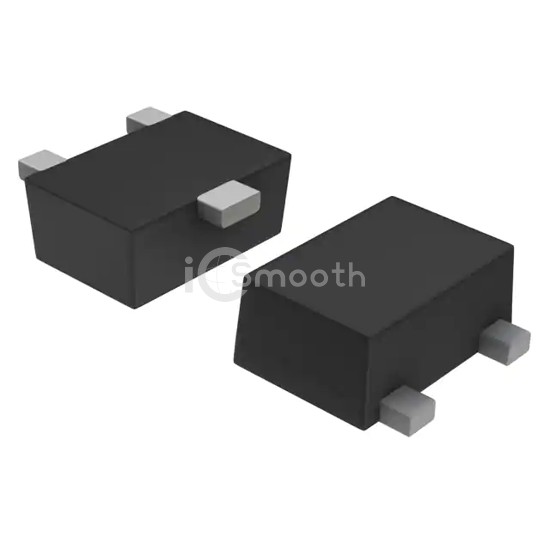

NTK3142PT1G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTK3142PT1G onsemi
NTK3142PT1G

onsemi

MOSFET P-CH 20V 215MA SOT723

NTK3142PT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 215MA SOT723. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-723.

Datasheet Request a Quote

In Stock: 50,206

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C215mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs4Ohm @ 260mA, 4.5V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds15.3 pF @ 10 V
FET Feature-
Power Dissipation (Max)280mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-723
Package / CaseSOT-723
