NTK3139PT5G

In Stock: 7,413

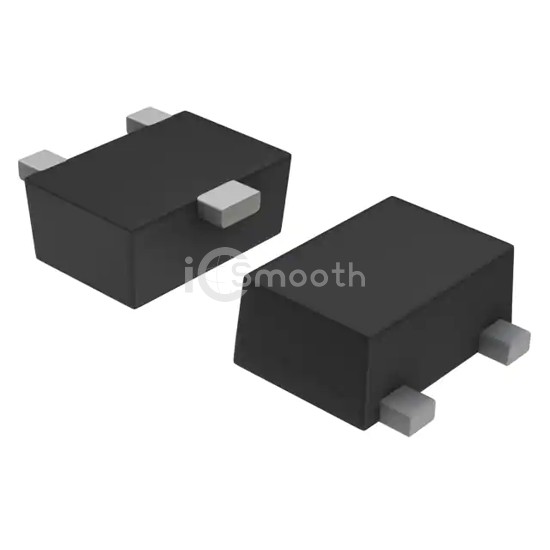

NTK3139PT5G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTK3139PT5G onsemi
NTK3139PT5G

onsemi

MOSFET P-CH 20V 660MA SOT723

NTK3139PT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 660MA SOT723. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-723.

Datasheet Request a Quote

In Stock: 7,413

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C660mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs480mOhm @ 780mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±6V
Input Capacitance (Ciss) (Max) @ Vds170 pF @ 16 V
FET Feature-
Power Dissipation (Max)310mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-723
Package / CaseSOT-723
