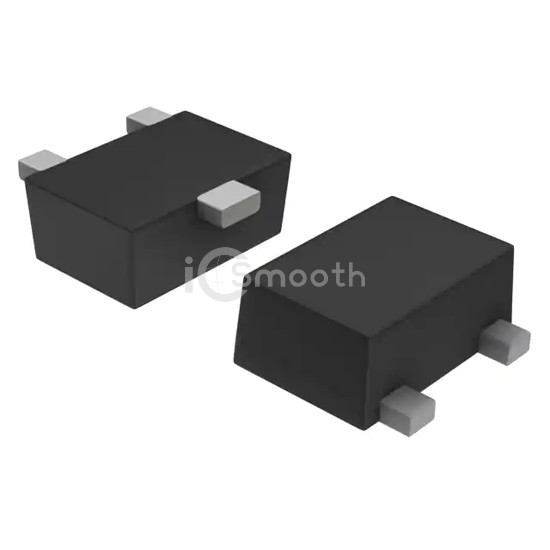

NTK3134NT5G

In Stock: 14,993
NTK3134NT5G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTK3134NT5G onsemi
NTK3134NT5G

onsemi

MOSFET N-CH 20V 750MA SOT723

NTK3134NT5G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 750MA SOT723. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-723.

Datasheet Request a Quote

In Stock: 14,993

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C750mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs350mOhm @ 890mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±6V
Input Capacitance (Ciss) (Max) @ Vds120 pF @ 16 V
FET Feature-
Power Dissipation (Max)310mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-723
Package / CaseSOT-723
