NTH4L027N65S3F

In Stock: 5,059

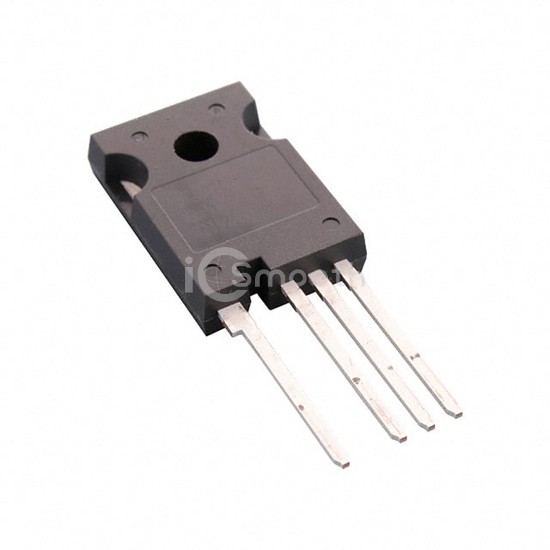

NTH4L027N65S3F - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTH4L027N65S3F onsemi
NTH4L027N65S3F

onsemi

MOSFET N-CH 650V 75A TO247-4

NTH4L027N65S3F is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 650V 75A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 5,059

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs27.4mOhm @ 35A, 10V
Vgs(th) (Max) @ Id5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs259 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds7690 pF @ 400 V
FET Feature-
Power Dissipation (Max)595W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
