Name: NTD78N03-035
Brand: onsemi
SKU: NTD78N03-035
Availability: InStock

REF: NTD78N03-035 onsemi

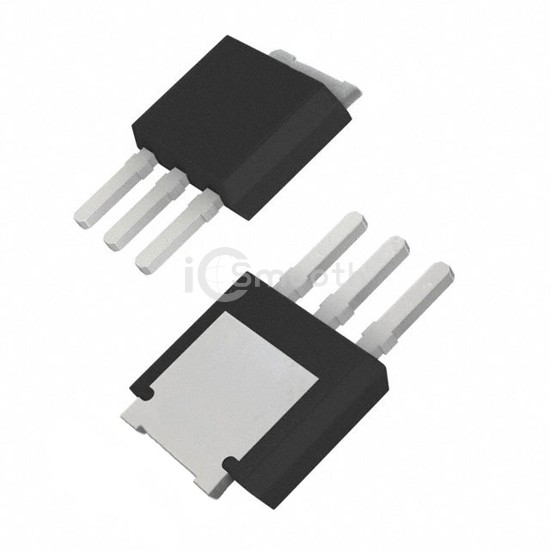

NTD78N03-035

MOSFET N-CH 25V 11.4A/78A IPAK

NTD78N03-035 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 11.4A/78A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 8,478

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	11.4A (Ta), 78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6mOhm @ 78A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2250 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta), 64W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-Pak
Package / Case	TO-251-3 Stub Leads, IPak
