Name: NTD65N03R-035
Brand: onsemi
SKU: NTD65N03R-035
Availability: InStock

REF: NTD65N03R-035 onsemi

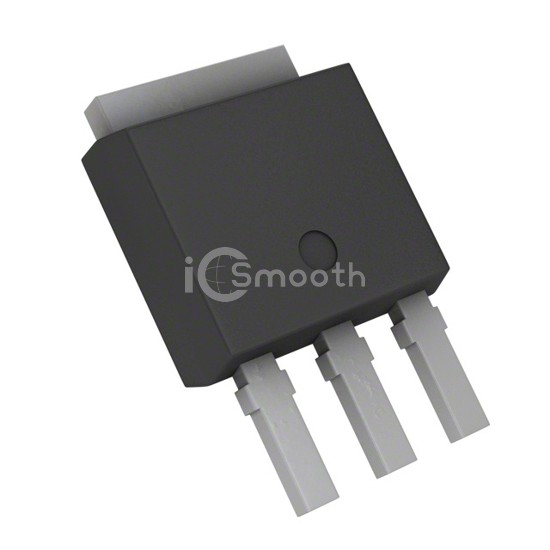

NTD65N03R-035

MOSFET N-CH 25V 9.5A/32A IPAK

NTD65N03R-035 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 9.5A/32A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 3,274

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	9.5A (Ta), 32A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.4mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	16 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1400 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta), 50W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-Pak
Package / Case	TO-251-3 Stub Leads, IPak
