Name: NTD4860NA-35G
Brand: onsemi
SKU: NTD4860NA-35G
Availability: InStock

REF: NTD4860NA-35G onsemi

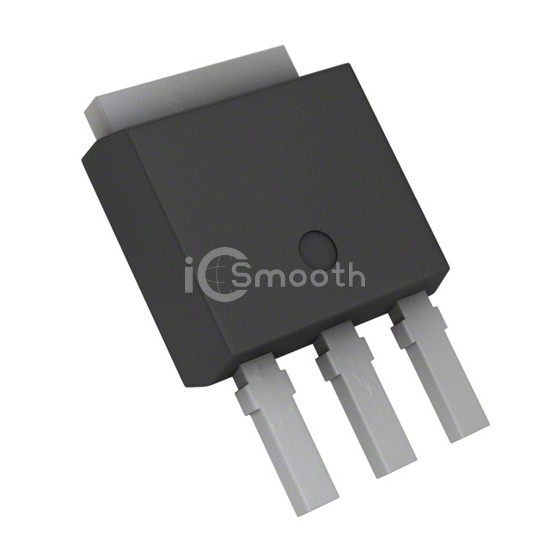

NTD4860NA-35G

MOSFET N-CH 25V 10.4A/65A IPAK

NTD4860NA-35G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 25V 10.4A/65A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 4,504

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	10.4A (Ta), 65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	7.5mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21.8 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	1308 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	1.28W (Ta), 50W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-Pak
Package / Case	TO-251-3 Stub Leads, IPak
