Name: NTD3808N-35G
Brand: onsemi
SKU: NTD3808N-35G
Price: 0.27 USD
Availability: InStock

REF: NTD3808N-35G onsemi

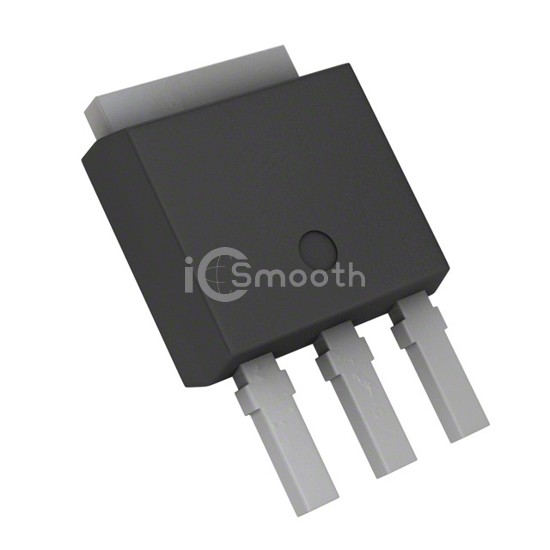

NTD3808N-35G

MOSFET N-CH 16V 12A/76A IPAK

NTD3808N-35G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 16V 12A/76A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Datasheet Request a Quote

In Stock: 7,050

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	16 V
Current - Continuous Drain (Id) @ 25°C	12A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.8mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 4.5 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	1660 pF @ 12 V
FET Feature	-
Power Dissipation (Max)	1.3W (Ta), 52W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-Pak
Package / Case	TO-251-3 Stub Leads, IPak
