Name: NTD360N65S3H
Brand: onsemi
SKU: NTD360N65S3H
Price: 2.04 USD
Availability: InStock

REF: NTD360N65S3H onsemi

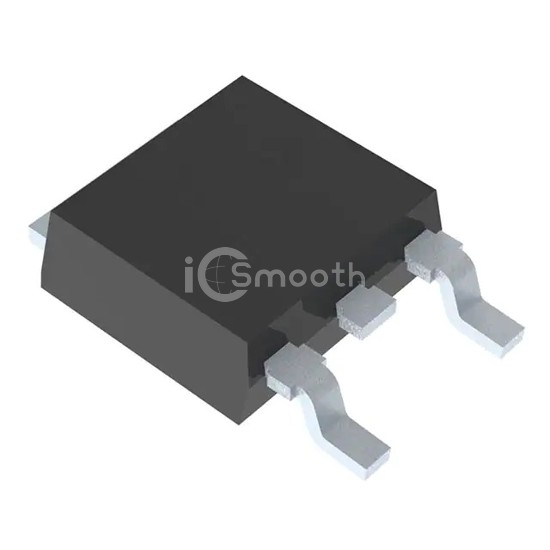

NTD360N65S3H

POWER MOSFET, N-CHANNEL, SUPERFE

NTD360N65S3H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, N-CHANNEL, SUPERFE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,320

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	10A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 700µA
Gate Charge (Qg) (Max) @ Vgs	17.5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	916 pF @ 400 V
FET Feature	-
Power Dissipation (Max)	83W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D-PAK (TO-252)
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
