NTBLS1D5N08MC

In Stock: 3,856

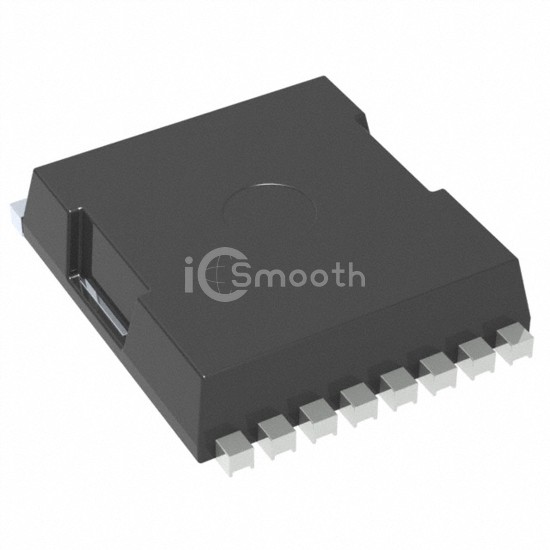

NTBLS1D5N08MC - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTBLS1D5N08MC onsemi
NTBLS1D5N08MC

onsemi

MOSFET N-CH 80V 32A/298A 8HPSOF

NTBLS1D5N08MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 80V 32A/298A 8HPSOF. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSFN.

Datasheet Request a Quote

In Stock: 3,856

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C32A (Ta), 298A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6V, 10V
Rds On (Max) @ Id, Vgs1.53mOhm @ 80A, 10V
Vgs(th) (Max) @ Id4V @ 710µA
Gate Charge (Qg) (Max) @ Vgs111 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds8170 pF @ 40 V
FET Feature-
Power Dissipation (Max)2.9W (Ta), 250W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HPSOF
Package / Case8-PowerSFN
