Name: NTBGS6D5N15MC
Brand: onsemi
SKU: NTBGS6D5N15MC
Price: 6.58 USD
Availability: InStock

REF: NTBGS6D5N15MC onsemi

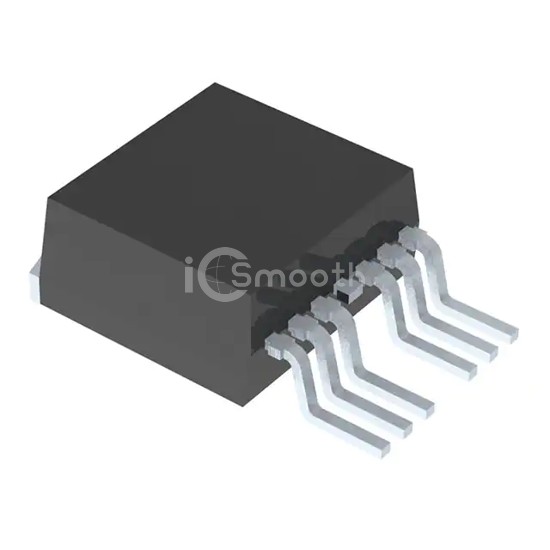

NTBGS6D5N15MC

MOSFET N-CH 150V 15A/121A D2PAK

NTBGS6D5N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 150V 15A/121A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 93

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 121A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 69A, 10V
Vgs(th) (Max) @ Id	4.5V @ 379µA
Gate Charge (Qg) (Max) @ Vgs	57 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4745 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 238W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (TO-263)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
