Name: NTBGS001N06C
Brand: onsemi
SKU: NTBGS001N06C
Price: 15.03 USD
Availability: InStock

REF: NTBGS001N06C onsemi

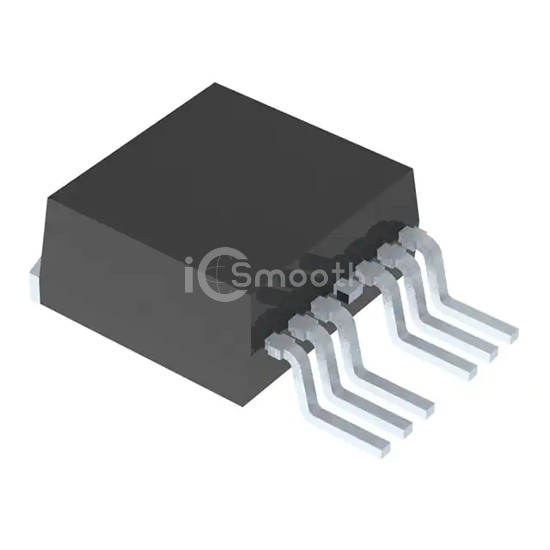

NTBGS001N06C

POWER MOSFET, 60 V, 1.1 M?, 342

NTBGS001N06C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, 60 V, 1.1 M?, 342. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-7, D²Pak (6 Leads + Tab).

Datasheet Request a Quote

In Stock: 4,214

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	42A (Ta), 342A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V, 12V
Rds On (Max) @ Id, Vgs	1.1mOhm @ 112A, 12V
Vgs(th) (Max) @ Id	4V @ 562µA
Gate Charge (Qg) (Max) @ Vgs	139 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11110 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 245W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (TO-263)
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
