Name: NTBG045N065SC1
Brand: onsemi
SKU: NTBG045N065SC1
Price: 16.27 USD
Availability: InStock

REF: NTBG045N065SC1 onsemi

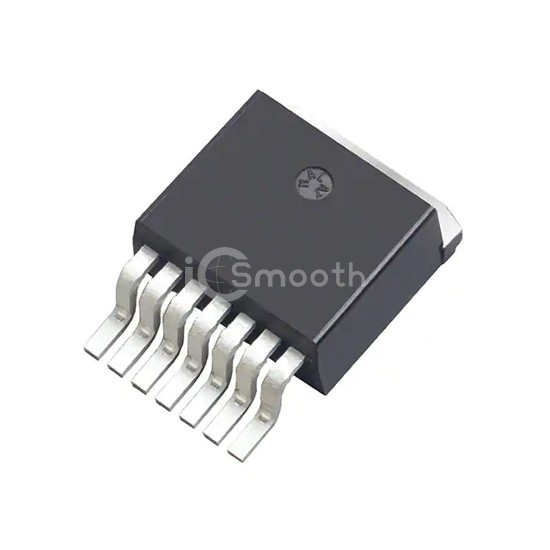

NTBG045N065SC1

SILICON CARBIDE MOSFET, NCHANNEL

NTBG045N065SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SILICON CARBIDE MOSFET, NCHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 790

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	62A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V, 18V
Rds On (Max) @ Id, Vgs	50mOhm @ 25A, 18V
Vgs(th) (Max) @ Id	4.3V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	105 nC @ 18 V

Vgs (Max)	+22V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1890 pF @ 325 V
FET Feature	-
Power Dissipation (Max)	242W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
