Name: NTBG020N090SC1
Brand: onsemi
SKU: NTBG020N090SC1
Price: 32.60 USD
Availability: InStock

REF: NTBG020N090SC1 onsemi

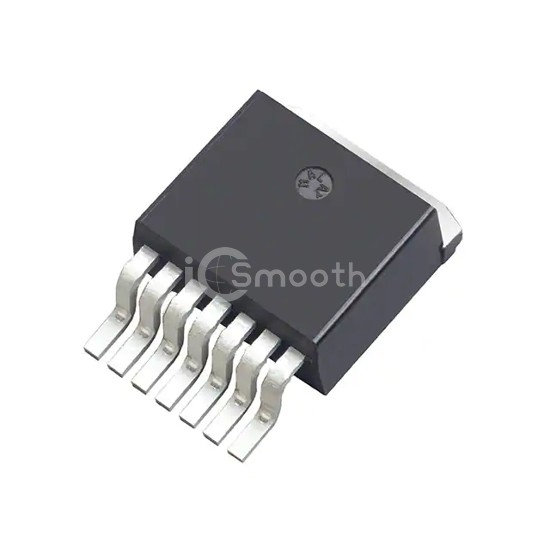

NTBG020N090SC1

SICFET N-CH 900V 9.8A/112A D2PAK

NTBG020N090SC1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SICFET N-CH 900V 9.8A/112A D2PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.

Datasheet Request a Quote

In Stock: 358

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	9.8A (Ta), 112A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	28mOhm @ 60A, 15V
Vgs(th) (Max) @ Id	4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs	200 nC @ 15 V

Vgs (Max)	+19V, -10V
Input Capacitance (Ciss) (Max) @ Vds	4415 pF @ 450 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 477W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK-7
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
