Name: NTB5D0N15MC
Brand: onsemi
SKU: NTB5D0N15MC
Price: 5.88 USD
Availability: InStock

REF: NTB5D0N15MC onsemi

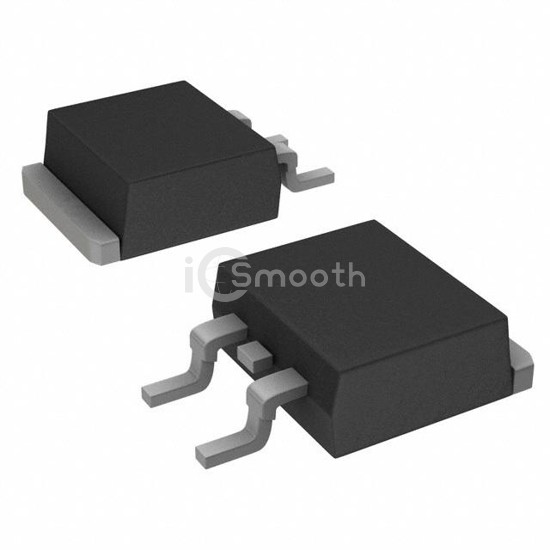

NTB5D0N15MC

MOSFET - N-CHANNEL SHIELDED GATE

NTB5D0N15MC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET - N-CHANNEL SHIELDED GATE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 6,275

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	18A (Ta), 139A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5mOhm @ 97A, 10V
Vgs(th) (Max) @ Id	4.5V @ 532µA
Gate Charge (Qg) (Max) @ Vgs	75 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6300 pF @ 75 V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 214W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK-3 (TO-263-3)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
