Name: NTB004N10G
Brand: onsemi
SKU: NTB004N10G
Price: 6.96 USD
Availability: InStock

REF: NTB004N10G onsemi

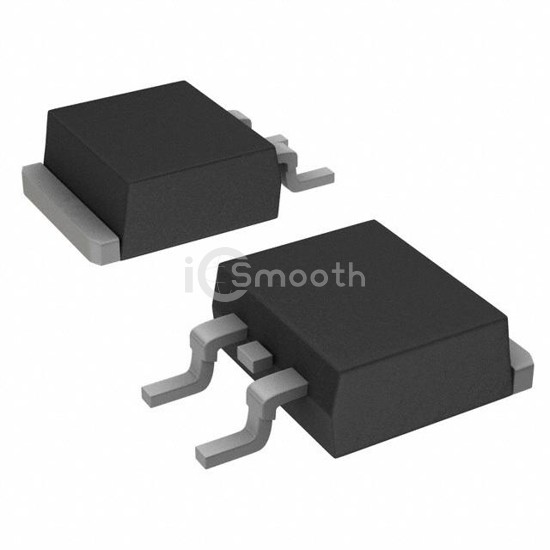

NTB004N10G

MOSFET N-CH 100V 201A TO263

NTB004N10G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 100V 201A TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3,296

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	201A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 500µA
Gate Charge (Qg) (Max) @ Vgs	175 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11900 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	340W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D²PAK-3 (TO-263-3)
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
