NTA4151PT1H

In Stock: 1,697

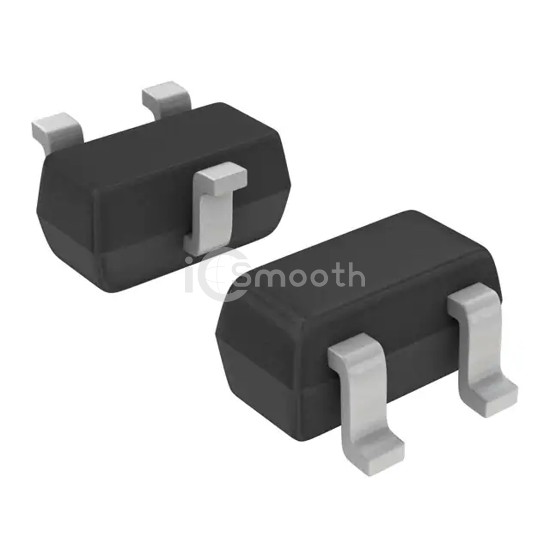

NTA4151PT1H - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTA4151PT1H onsemi
NTA4151PT1H

onsemi

MOSFET P-CH 20V 760MA SC75

NTA4151PT1H is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 760MA SC75. Key specifications: mounting type Surface Mount, package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 1,697

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C760mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs360mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.1 nC @ 4.5 V
Vgs (Max)±6V
Input Capacitance (Ciss) (Max) @ Vds156 pF @ 5 V
FET Feature-
Power Dissipation (Max)301mW (Tj)
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageSC-75, SOT-416
Package / CaseSC-75, SOT-416
