Name: NTA4151PT1
Brand: onsemi
SKU: NTA4151PT1
Availability: InStock

REF: NTA4151PT1 onsemi

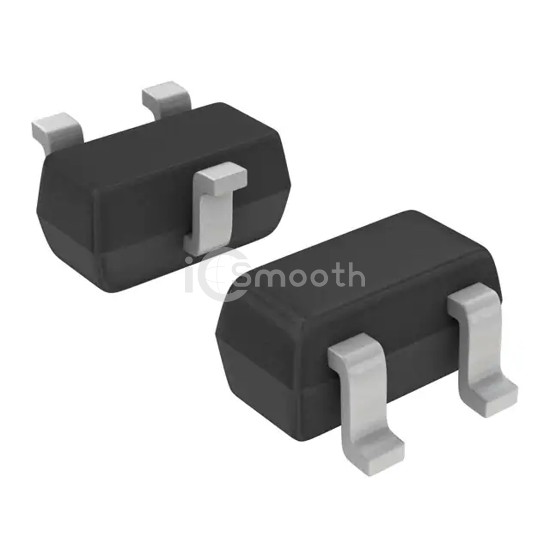

NTA4151PT1

MOSFET P-CH 20V 760MA SC75

NTA4151PT1 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 20V 760MA SC75. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 9,751

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	760mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	360mOhm @ 350mA, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.1 nC @ 4.5 V

Vgs (Max)	±6V
Input Capacitance (Ciss) (Max) @ Vds	156 pF @ 5 V
FET Feature	-
Power Dissipation (Max)	301mW (Tj)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-75, SOT-416
Package / Case	SC-75, SOT-416
