NTA4001NT1G

In Stock: 20,725

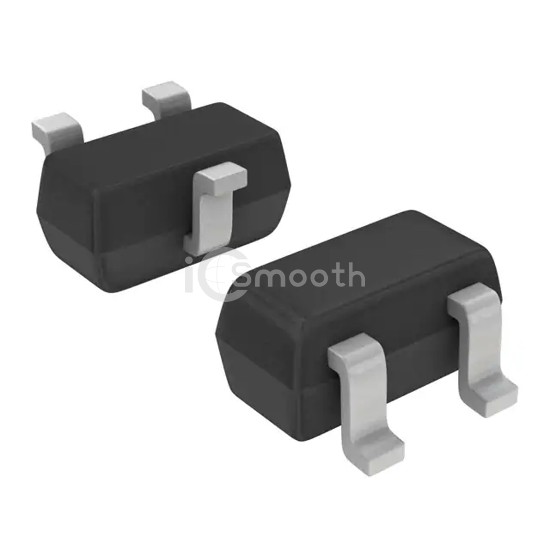

NTA4001NT1G - onsemi - Transistors - FETs, MOSFETs - Single
REF: NTA4001NT1G onsemi
NTA4001NT1G

onsemi

MOSFET N-CH 20V 238MA SC75

NTA4001NT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 238MA SC75. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75, SOT-416.

Datasheet Request a Quote

In Stock: 20,725

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C238mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs3Ohm @ 10mA, 4.5V
Vgs(th) (Max) @ Id1.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds20 pF @ 5 V
FET Feature-
Power Dissipation (Max)300mW (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-75, SOT-416
Package / CaseSC-75, SOT-416
